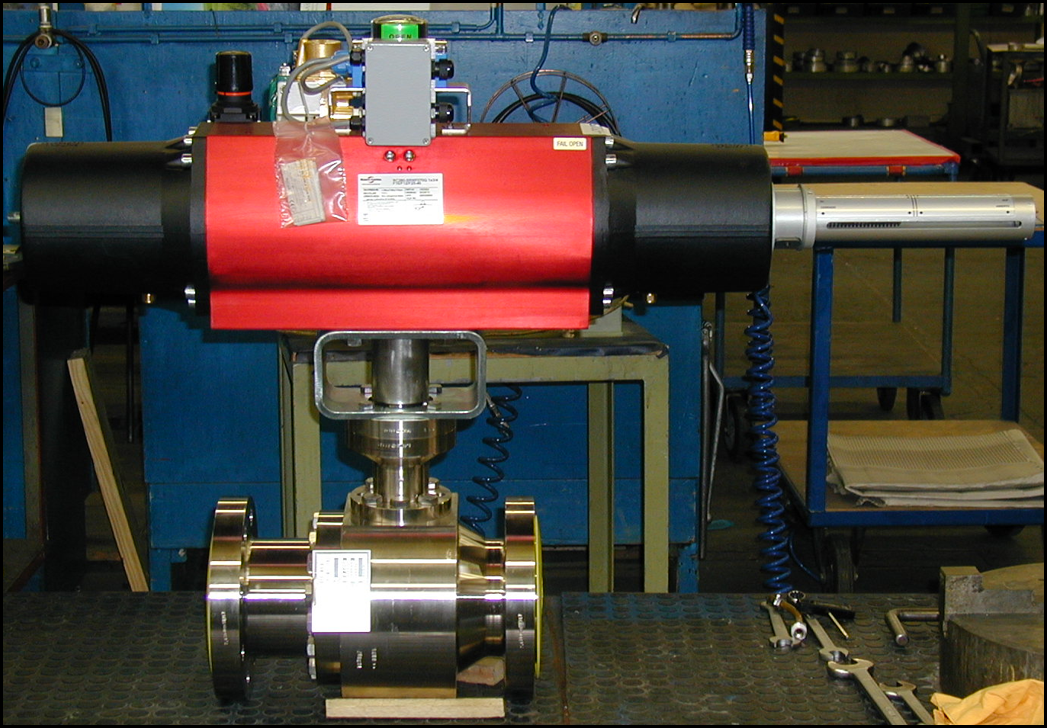

KH-80
This perrin ball valves are generally used for hot and abrasive service media, different combination of material in casting or forging like Stainless steel, Carbon steel are available as per medium like gas, liquid or slurry.
Perrin KH – 80 ball valves is a two piece split body housing with floating ball design. Valves are equipped with spring loaded seat system and live loaded stem packing, which provides tightness during rapid temperature changes.
Stem extensions, locking devices and actuator accessories can be attached without operating interruptions.
| Salient Features | |
|---|---|
| Size Range | Diameter ½” to 12” / DN 15 to 300 |
| Pressure Class | ANSI Class 150 - 300 |
| Temperature Range | -20°F to +850°F / -60°C to +450°C |
| Testing Standards | API 598, EN 12266 – 1/2 |
| Certificates | ‘TA – Luft’ Low Fugitive Emission |
| Actuator Mounting as per | ISO 5211 |
| Design Standards | API 608, API 6D, EN 12516, AD-2000, ASME B 16.34 |
| Stem | Fire Safe design, Live loaded stem packing |
KH-85
This perrin ball valves are generally used for hot and abrasive service media, different combination of material in casting or forging like Stainless steel, Carbon steel are available as per medium like gas, liquid or slurry.
Perrin KH – 85 ball valves is a two piece split body housing with floating ball design. Valves are equipped with spring loaded seat system and live loaded stem packing, which provides tightness during rapid temperature changes.
Stem extensions, locking devices and actuator accessories can be attached without operating interruptions.
| Salient Features | |
|---|---|
| Size Range | Diameter ½” to 6” / DN 15 to 150 |
| Pressure Class | ANSI Class 150 - 300 |
| Temperature Range | -20°F to +850°F / -60°C to +450°C |
| Testing Standards | API 598, EN 12266 – 1/2 |
| Certificates | ‘TA – Luft’ Low Fugitive Emission |
| Actuator Mounting as per | ISO 5211 |
| Design Standards | API 608, API 6D, EN 12516, AD-2000, ASME B 16.34 |
| Stem | Fire Safe design, Live loaded stem packing |
