KH-64

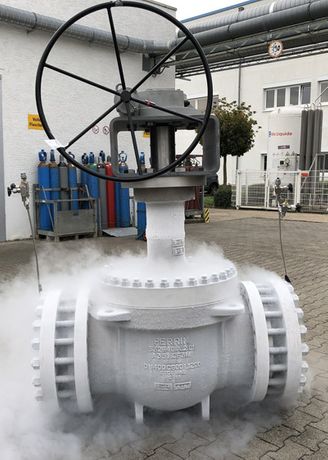

Our Cryogenic-valves can be designed with either floating or trunnion mounted balls. Due to the stem extension and the chosen seat rings, the ball valve can be used for cryogenic temperatures down to -196°C. The special seat ring design tolerates the Bi-directional application up to full differential pressure. Top entry valves can be directly welded to pipeline without any damages to internals.
| Salient Features | |
|---|---|
| Size Range | 1⁄2 - 200 inch / DN 15 – 200 |
| Pressure Class | ANSI Class 150 - 300 |
| Temperature Range | -196°C - 100°C |
| Fugitive Emission | ISO – 15848 - 1 |
| Fire safe tested | ISO 10497, API 607 |
| Actuator Mounting as per | ISO 5211 |
| Design Standards | API 6D, BS 6364, EN 1626, ISO28921, OCIMF |
| Stem | Blow out proof stem, Anti-static design |
KH-67
Our Cryogenic-valves can be designed with either floating or trunnion mounted balls. Due to the stem extension and the chosen seat rings, the ball valve can be used for cryogenic temperatures down to -196°C. The special seat ring design tolerates the Bi-directional application up to full differential pressure. Top entry valves can be directly welded to pipeline without any damages to internals.
| Salient Features | |
|---|---|
| Size Range | 1 -8 inch |
| Pressure Class | ANSI Class 150 - 300 |
| Temperature Range | -196°C - 100°C |
| Fugitive Emission | ISO – 15848 - 1 |
| Fire safe tested | ISO 10497, API 607 |
| Actuator Mounting as per | ISO 5211 |
| Design Standards | API 6D, BS 6364, EN 1626, ISO28921, OCIMF |
| Stem | Blow out proof stem, Anti-static design |
